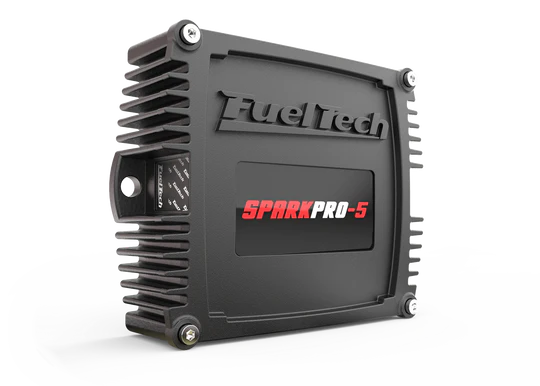

SparkPRO-5

High energy inductive ignition to be used with ignition coils w/o igniter (dumb coils).

Features

• High energy inductive ignition
• SparkPRO-5 - 5 ignition outputs
• Available in versions from 1 to 8 ignition outputs
• High Voltage at the coil’s primary: up to 430V

Technical Description

• Used only with “dumb” coils (coils without igniter)
• Each SparkPRO channel can be connected to only one coil at a time
• Compatible with any programmable ECU that has dwell control
• Cannot be used with stock ECU
• Dimensions: 115 x 90 x 33mm

Contents of Packaging

• 1 SparkPRO-5
• 1 Operation and installation guide
• 1 6.5ft SparkPRO unterminated harness (optional)
• 1 FuelTech black carbon fiber sticker
