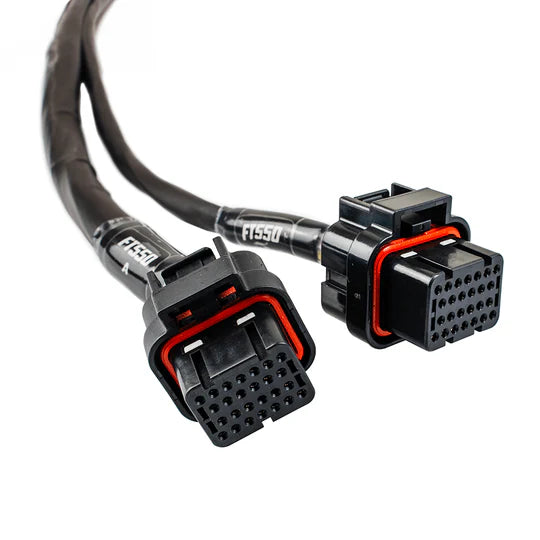

FT550 Kawasaki 1500 Harness

FT550 Kawasaki SXR 1500 Jet-ski PNP

This plug and play harness allows you to remove the stock ECU from the Kawasaki SX-R 1500 Jet-skis and replace with a FuelTech FT550 standalone ECU.

It requires an ignitor module to drive the duble coils, which can be the OEM 3 channel we offer as a OEM level equivalent of performance or higher energy ignition module FuelTech SparkPRO-3 Nautica version. It need 2 channels but the 3 channel igniter has better availability.

There is one modification required on the stock harness which is to unpin the 12v from the Idle control valve because the FuelTech ECU drives it differently, or if you don't use it just disconnect.

There are available inputs from the FT550 ECU that can be wired from the EXTRA connector to additional sensors like fuel pressure, oil pressure, tunnel pressure, temperature and more. Also available outputs that can be used to control boost controller, nitrous, additional fuel pump and more. Also the FuelTech CAN bus is available if you want to wire any FuelTech product like EGT-4 for exhaust gas temperature sensors, wideband o2 sensors using a FuelTech Nano or NanoPRO conditioner and more.
