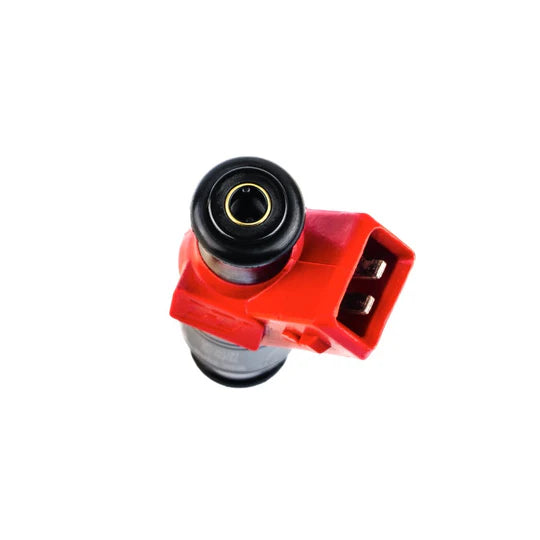

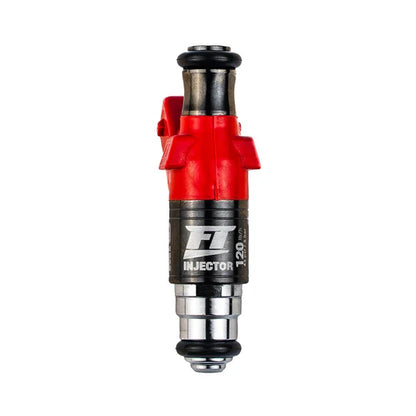

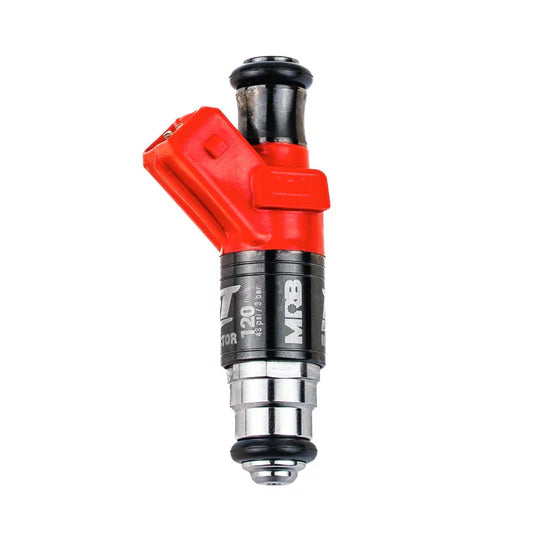

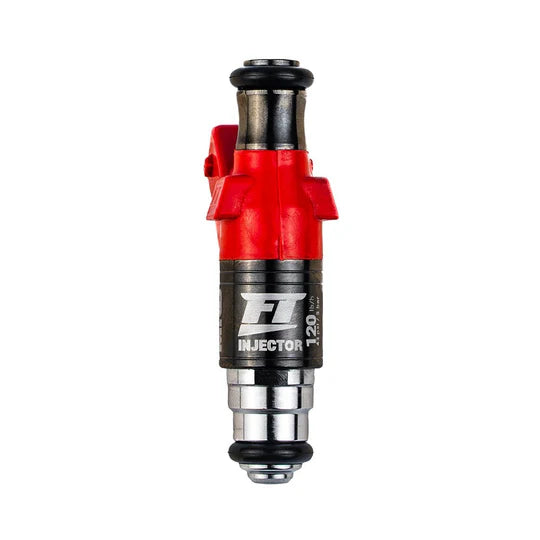

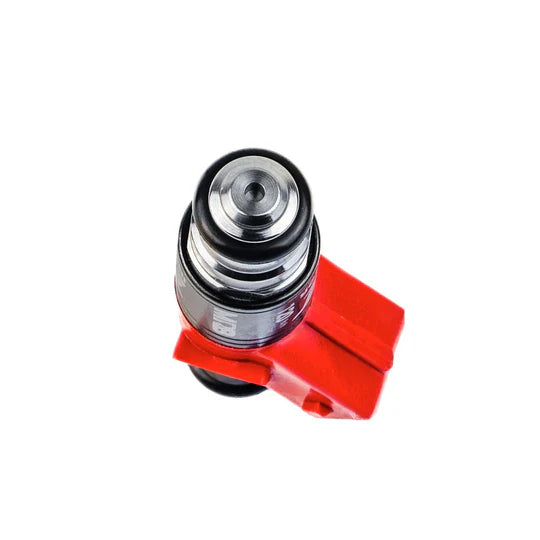

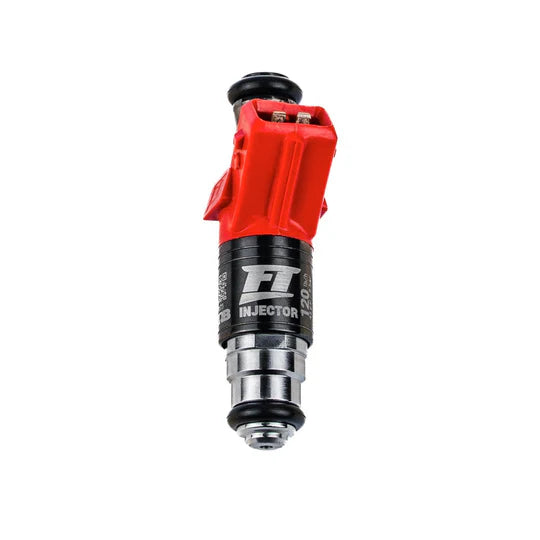

FT Injector 120 lb/h

FEATURES

• REAL flow, all injectors are tested, and calibrated to ensure linearity, repeatability and accuracy for all cylinders.
• It has internal components resistant to corrosion, guaranteed by the salinization test carried out on all raw material used.
• Compatible with any type of fuel (Gasoline, Ethanol, nitromethane, nitropropane, MTBE and ETBE)
• Compatible with any ECU on the market
• FuelTech warranty and support
• Project developed prioritizing the quality and durability of the injector.

TECHNICAL DESCRIPTION

• High impedance
• Coil resistance: (8.2 - 8.1) Ohms
• Ingress protection Rating: IP67 / NEMA6

DIMENSIONS:

1 - Overall height - 74 mm (2.91”)

2 - Overall width - 18 mm (0.71”)

3 - Top O-ring diameter - 14.50 mm (0.56”)

4 - Tip - 4.1 mm (0.16”)

5 - Bottom O-ring diameter - 14.50 mm (0.56”)

PRODUCT CONTENT:

• 1 FT Injector
• 1 Manual

WARRANTY: 90 days
