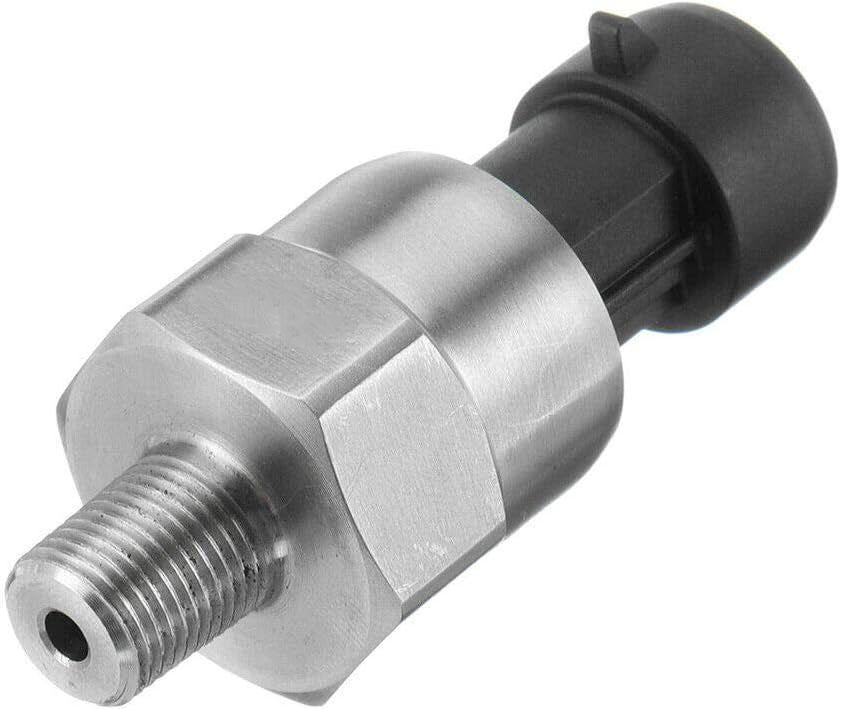

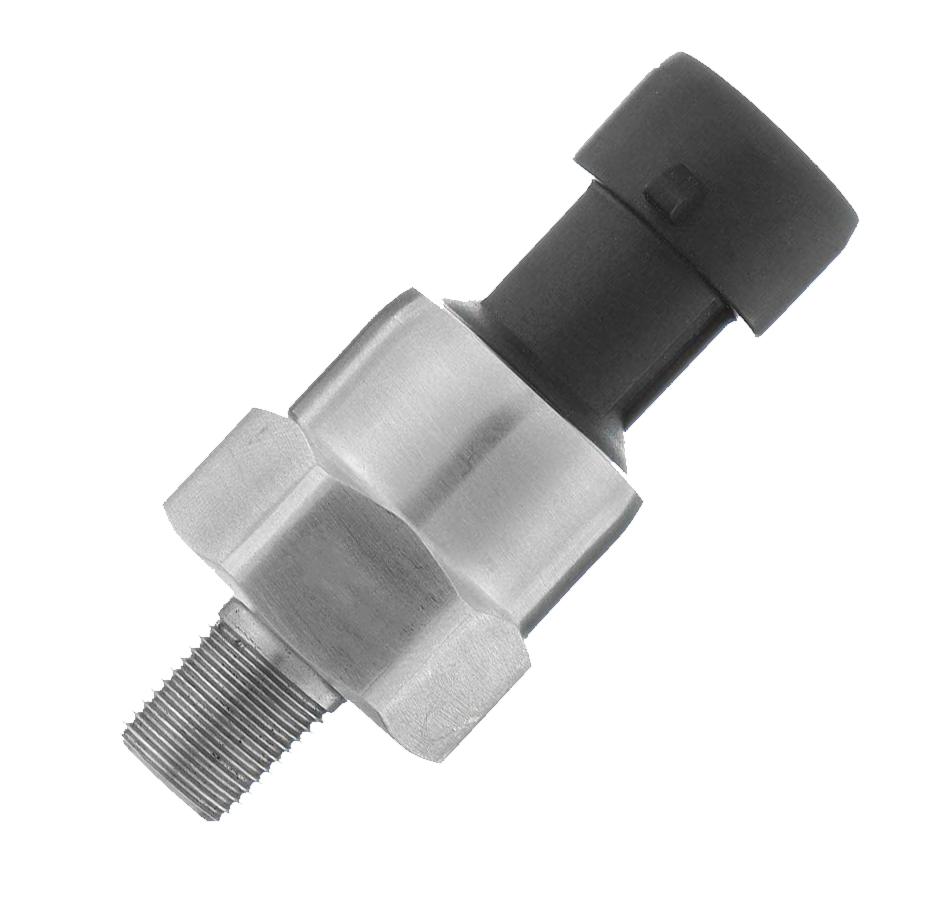

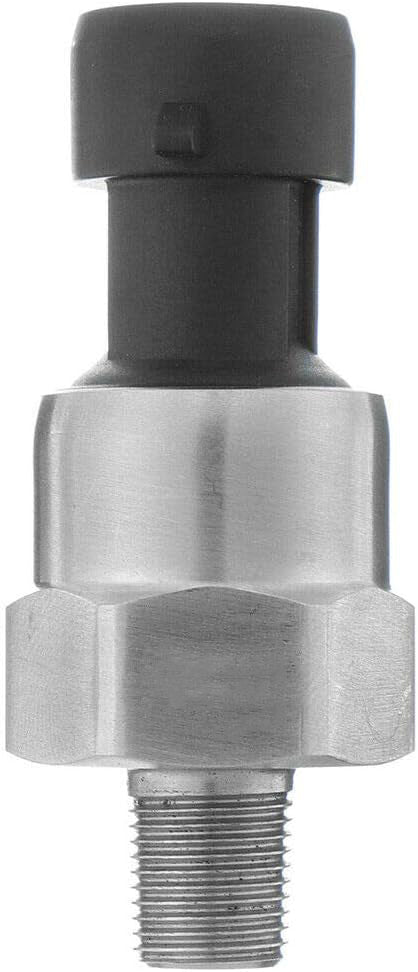

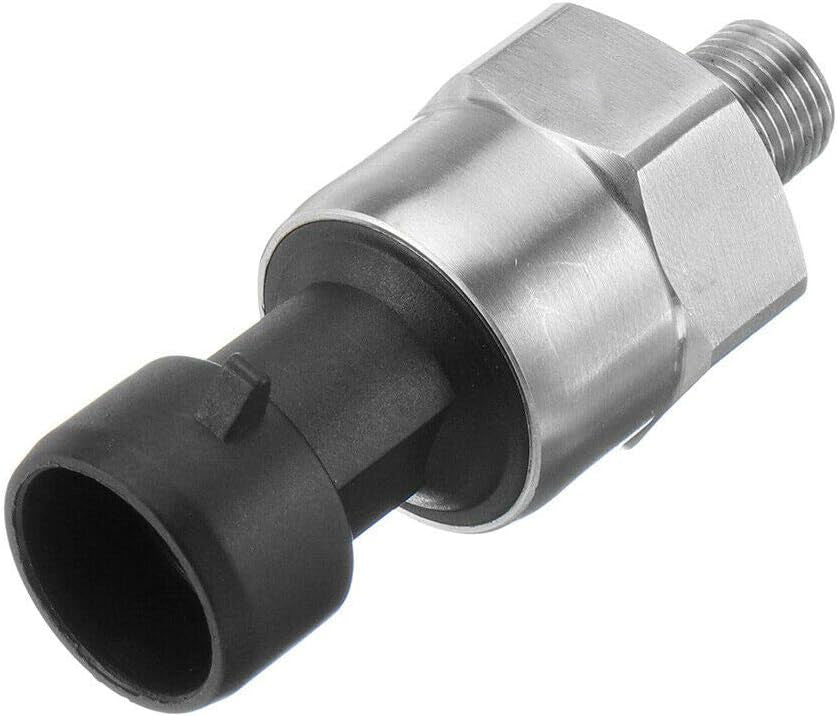

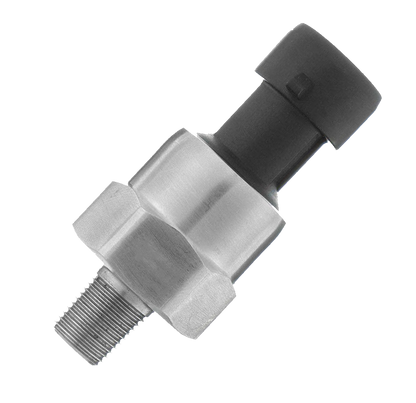

12 BAR Pressure Sensor

Features:

• Plug and play for both fuel and oil pressure inputs.

• Stainless steel construction.

• Comes with mating connector for custom configurations.

• Linear voltage output of 0.5-4.5 volts.


Specifications:

• Body Diameter: 0.875"

• Body Length: 2.558"

• Inlet Size: 1/8" - 27 NPT

• Linear voltage output: 0.5 - 4.5 Volts

• Material: Stainless Steel

• Pressure Range: 0-100 PSI

• Reference voltage required: 5 Volts
